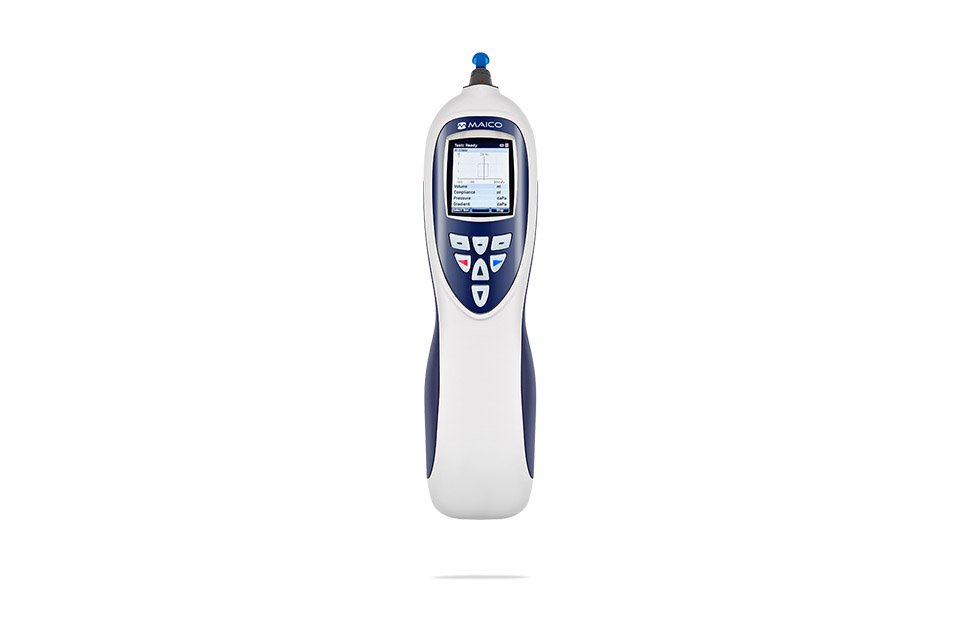

MAICO easyTymp handheld Tympanometer

easyTymp Screening

Fast, portable, easy — our handheld easyTymp performs accurate tympanometry and ipsilateral reflex tests within seconds. easyTymp is not only fast it also eases the process of screening for all professionals: the device automatically increases the intensity of the four frequencies of the ipsilateral reflex test until it detects a reflex or reaches the maximum. With these automatic tests, even first-time users will get the most accurate results.



Features at a glance:

  • Very fast and reliable impedance measurements
  • Probe tone 226 Hz, optional high frequency probe tone 1 kHz
  • Reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsilateral, contralateral with Plus Version*)
  • Automatic tests – self-explanatory to use
  • Full color, high resolution display
  • Stores more than 1000 measurements
  • Optional Printer
  • Optional MAICO Sessions PC Software



*Please note: easyTymp Plus is not available for purchase in North, Central or South America.

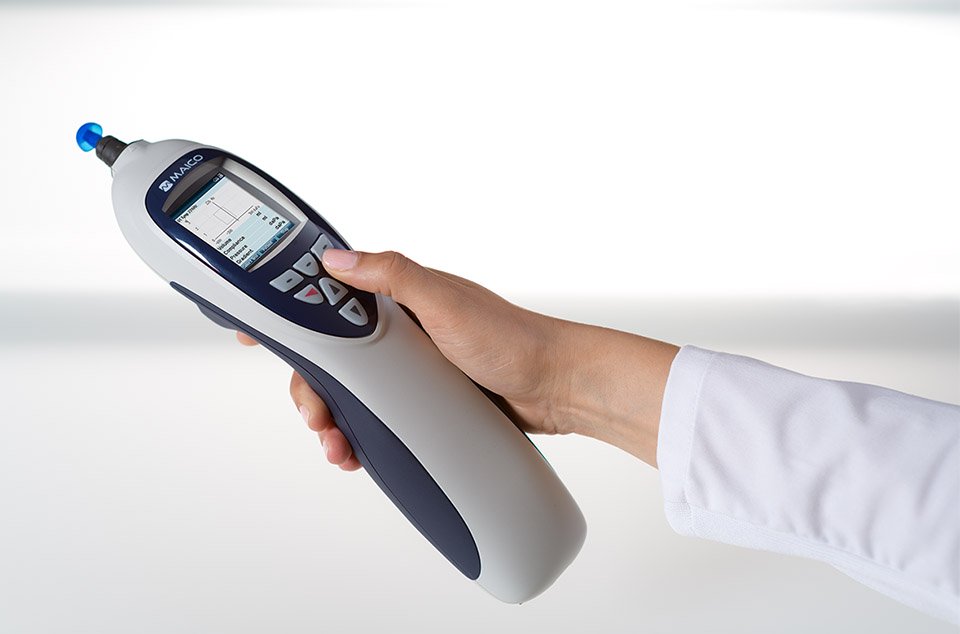

Handheld impedance measurement with MAICO easyTymp

Easy Protocol Selection and
Test Result Management

Select protocols easily with one hand. The standard protocols include tympanometry with 226 Hz and acoustic reflexes with automatic threshold detection or with fixed levels. Store the test results directly in easyTymp. The handheld tympanometer stores more than 1000 measurements. With the included MAICO software, test results and patient data can easily be transferred to a PC.


Middle Ear Analysis with MAICO easyTymp

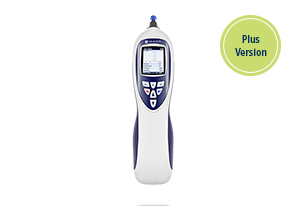

easyTymp Plus — Ipsi- and Contralateral Tests Form a Big Plus

Additional to all the functions in the Basic Version, the easyTymp Plus offers automated contralateral reflex tests with its extra long contra probe. The contralateral reflex tests are performed with automatic and fixed reflexes based on the protocol selected. For the high frequency tone, contralateral reflex tests perform at 80 dB SPL with broadband noise.

*Please note: easyTymp Plus is not available for purchase in North, Central or South America.
These are the international datasheets. Specifications may vary by country. You´ll find all datasheets in various languages and more in our Download Center

Get your non-binding offer

Quote

Need Full Diagnostic Functionality?

The easyTymp Pro for diagnostic unites the intuitive operation of a screening device with the options and accuracy of a diagnostic instrument.
