easyTymp Diagnostic

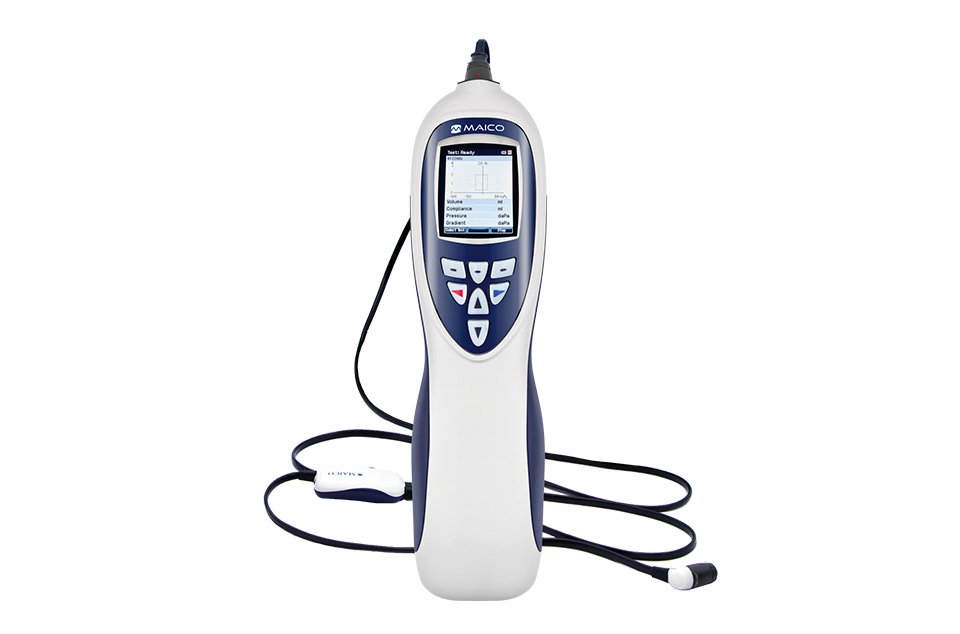

The easyTymp Pro for middle ear hearing diagnostic and screening unites the intuitive operation of a handheld screening device with the options and accuracy of a diagnostic instrument. With this version you get all features of the easyTymp screening versions with reflex decay (ipsilateral and contralateral) and Eustachian Tube Function (ETF) testing (intact and perforated) on top.



Features at a glance:

  • Very fast and reliable middle ear measurements
  • Probe tone 226 Hz
  • Optional high frequency probe tone 1 kHz
  • Reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsi- and contralateral)
  • Reflex decay testing (ipsi- and contralateral)
  • Eustachian tube function (ETF) test for intact and perforated eardrums
  • Automatic tests – self-explanatory to use
  • Full color, high resolution display
  • Stores more than 1000 measurements
  • Optional thermal printer
  • Optional MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management





*Please note: This is the international datasheet. Specifications may vary by country. You´ll find all datasheets in various languages and more in our Download Center

diagnostic-tympanometer-maico

Comprehensive Protocols for
Diagnostic Tympanometry

easyTymp Pro comes with an extra long contra probe for automated contralateral reflex tests. The reflex tests are performed with automatic and fixed reflexes based on the protocol selected. For the high frequency tone, contralateral fixed reflex tests perform at 80 dB HL with broadband noise. The easyTymp Pro also includes reflex decay measurements (ipsilateral and contralateral) as well as Eustachian Tube Function for intact and perforated eardrums.

Get your non-binding offer

A Handheld middle ear analyzer for
fast tympanometry hearing screening?

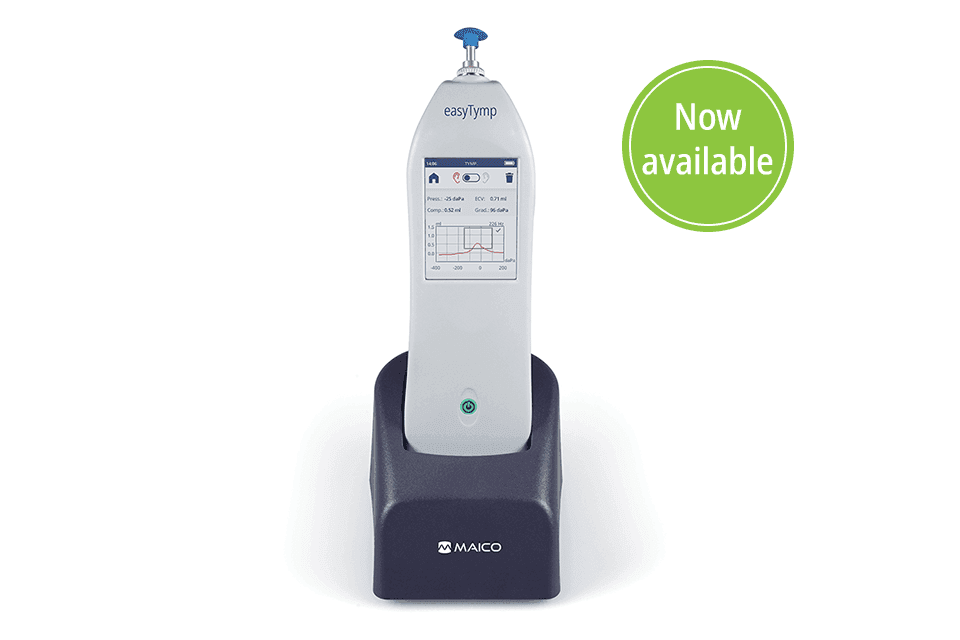

The basic easyTymp for screening applications offers fast, portable and easy tympanometry.
